Products

Our first bespoke product is a much-needed device that we consider to be essential for Gamma Knife Icon testing

HDMM Calibrator

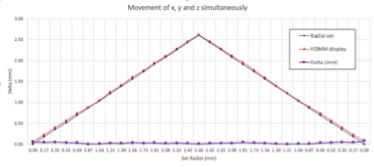

The MPL HDMM calibration test device uses a 3-Axis Linear Stage Displacement Platform to allow precise verification of the HDMM readout on the Gamma Knife Icon. Hysteresis is negligible.

The custom table fits perfectly into the mask adaptor and attaches firmly with four buttons

Adjustment

The relative position of the reflector can be adjusted in 0.01mm increments using the micrometer screws

Specifications

Accuracy 0.01mm

Increment: 0.01mm

Parallelism: 0.0015mm

Operating temperature: +15-25C (+59-77F)
